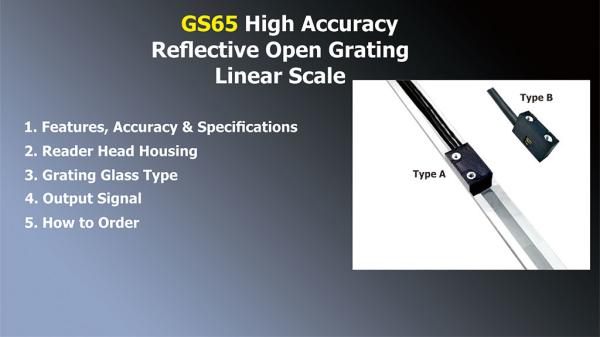

High Accuracy Optical Reflective Open Grating Linear Scale in Metrology Equipment
Product Specification
| | GS65 |
| Meas. Standard | 80μm (0.08mm) pitch grating glass |
| Meas. System | Reflective Phased Array Optics System |
| Reader Carriage | Non-Contact open grating carriage |
| Resolution | 0.02μm ( 20 nanometer ) |
| Meas. Travel | 120mm | G1: Standard length: 120mm, user cut on demand |
| 500mm | G2: Standard length: 500mm, user cut on demand |
| 1000mm | G2: Standard length: 1000mm, user cut on demand |
| 1200 - 3000mm | G3: Every 200mm per specification |
| Accuracy | 50 - 500mm | ±3μm / ±5μm |
| 550 - 1000mm | ±5μm / ±10μm |
| 1200 - 3000mm | ±10μm / m |
| Hysteresis | Included in accuracy |
| Max. Speed | 180m / min |
| Supply | DC 5V ± 5% |
| Output Signal | CPE-bus serial data interface |
| Output Connector | DSUB 9 PINs |
Reflective Open Grating Scale Advantages:
- Achieve the highest possible measuring repeatability that your mechanical structure is designed and built.
- Provide the best possible low speed high precision counting servo movement control for your machines or linear motor.
- thin reader head housing which offer two different installaion direction
- High resolution: 0.02μm ( 20 nanometer )
- maximum measuring speed up to 180m/min
- acceleration up to 4G
Three choices of measurement accuracy : ±3 μm, ±5 μm, ±10 μm
Installation Dimensions
Thanks to the small reader head size, this makes your scale installation very easy and convenience, there are two types of installation direction fixing the reader head.
TYPE A
TYPE B
Grating Glass Dimension
| Glass Dimension | High(mm) | Thick(mm) | Meas. Travel(mm) |
| G1 | 6.2 | 1.0 | 120 |
| G2 | 12 | 2.0 | 500 / 1000 |
| G3 | 12 | 3.0 | 1200 - 3000 |
There are three types of different grating glass dimensions in the GS65: 6.2mm x 1 mm glass, 12 mm x 2 mm glass, and 12 mm x 3 mm glass.
Connector interface
DSUB 9PIN
| PIN | TTL |
| Signal | Cable |
| 1 | A- | Yellow |
| 2 | 0V | White |
| 3 | B- | Red |
| 4 | GND | Silver |
| 5 | R- | Black |
| 6 | A | Green |
| 7 | 5V | Brown |
| 8 | B | Blue |
| 9 | R | Grey |
FAQs
1. Q: Did you accept OEM customized service?
A: Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.
2. Q: What is your company mainly produce?
A: We are mainly produce Vision Measurement Machine, Optical Profile Projector, Digital Readout System(Counter), Linear encoder glass scale. CNC linear scale
3. Q: What material you can provide for the exposed linear encoder scale grating glass?
A: Normal glass and Quartz glass
4. Q: How long can you produce the exposed linear scale?
A: Maximum 3000mm long.
5. Q: Warranty:
A: All the products we provide 13 months( from the date of shipment )
6. Q: Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.
7. Q: Payment:
Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
